Product Features
| Test Items | #BX-434/A(F3) | Test Methods |
| Colour | Transparent | IP196 |
| Base oil | Semi-synthetic oil | |
| Penetration | 220-250 | GB/T 269 |
| Consistency value (NLGI) | 3 | |
| Working temperature ℃ | -20 ℃ to +150 ℃ | |
| Drop point ℃ | 300℃ | GB/T 3498 |
| Copper corrosion (100℃ / 24Hrs) | qualified | GB/T 7326 |
| Four ball test (40kg/1 Hrs /1200rpm/75℃) | 250KG | GB/T 0202 |
Product advantages and uses
Conforms to REACH and European RoHS standards.

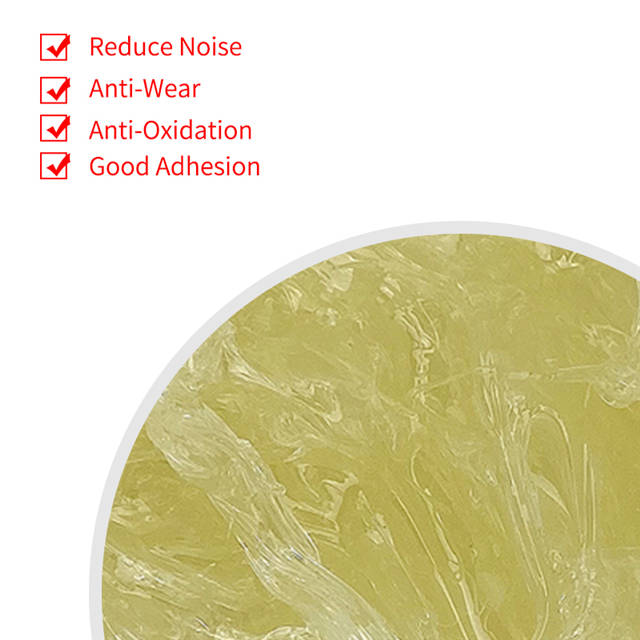

Good lubricity and chemical stability and mechanical stability, chemical resistance, water resistance and wear resistance.
This product is suitable for the damping and lubrication of rotary shafts of rotary potentiometers, inductors, resistors and other electrical components and slow-motion door dampers for audiovisual equipment.
It is suitable for the damping and lubrication of the active parts of the microscope, telescope instrument adjustment system and knobs and plastic toys that need to be slowed, sealed, positioned and fine-tuned.
Standard model: #BX-434/A(F3)
Packing specification: 15KG (plastic barrel)
Storage: indoor, normal temperature, avoid direct sunlight
The above information is for reference only. The actual performance and application are subject to the customer test results. Please pay attention to the test. Please use it after the test.
